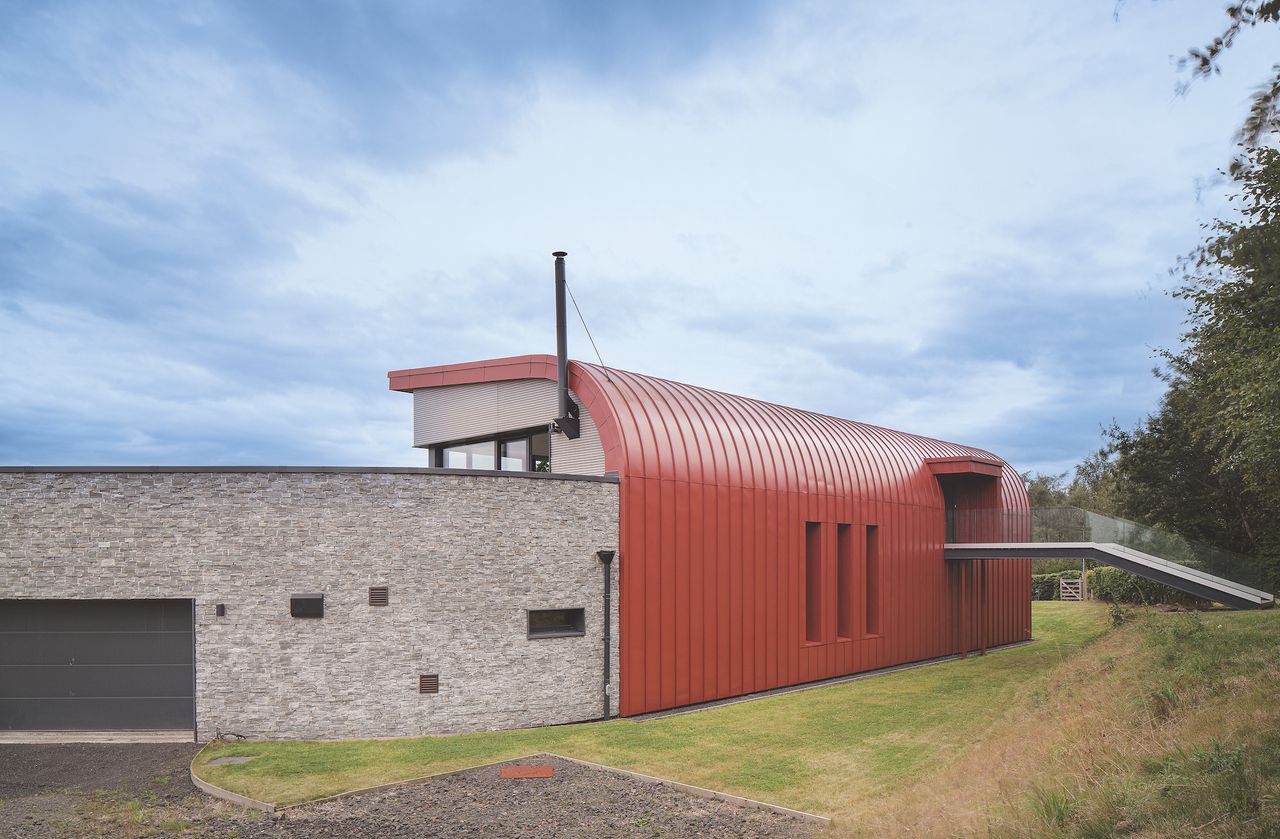

David and Rosie Reid have self built in Scotland — taking inspiration from Passivhaus designs to create their new low-energy home with striking curved roof
(Image credit: David Barbour)
When David and Rosie Reid were looking to build a low-energy home that would make the most of spectacular views in Fife, they were realistic about the scale of the task ahead. “We’d never done this before, so it was excitement and dread at the same time,” says David.
Their dream received a turbo-powered boost when the couple managed to find and purchase a plot in April 2017. This rare find was a rural greenfield site that not only enjoyed spectacular views of the surrounding countryside but already had planning consent for a self build home.
Here, the couple explain how they created their new home with striking curved roof.
Setting out a design brief

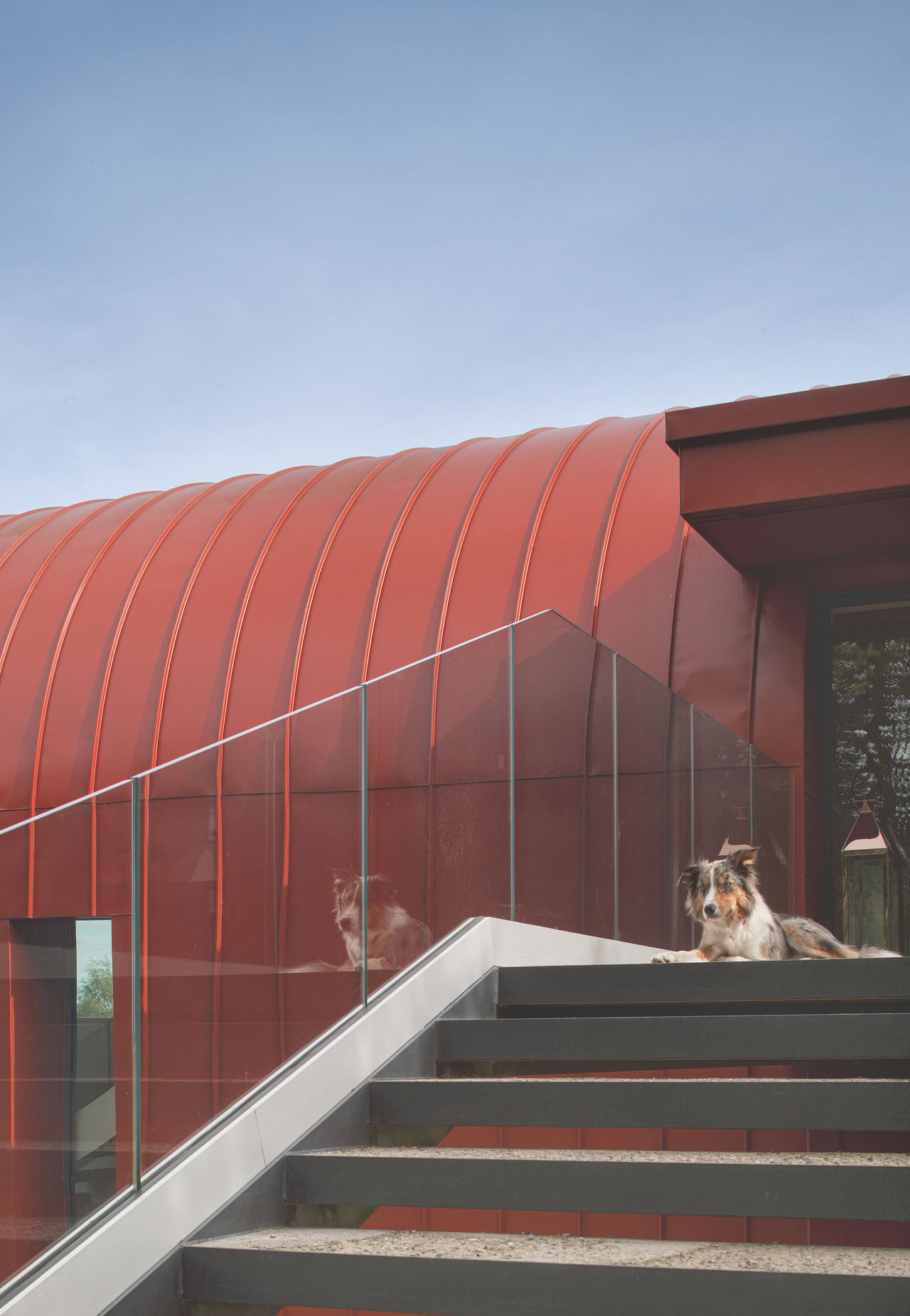

The couple’s main motivation in terms of their new home was to create a building that would be “sympathetic to the site,” says David. “We’re planning on being here a very long time, so it was important that the house worked for us. We wanted an upside-down house with the main open-plan living areas upstairs, and the private spaces downstairs. Also, we didn’t want a conventional door at ground level — we were keen to create the main entrance on the upper level.
“We also thought, ‘how about building a house without any heating?’,” David continues. “So it had to be as low energy as possible. We wanted to follow Passivhaus principles.”
At this stage the couple began to research architects and eventually found an ideal fit in Glasgow-based Ewan Cameron Architects (ECA) during an online search.
Image 1 of 2

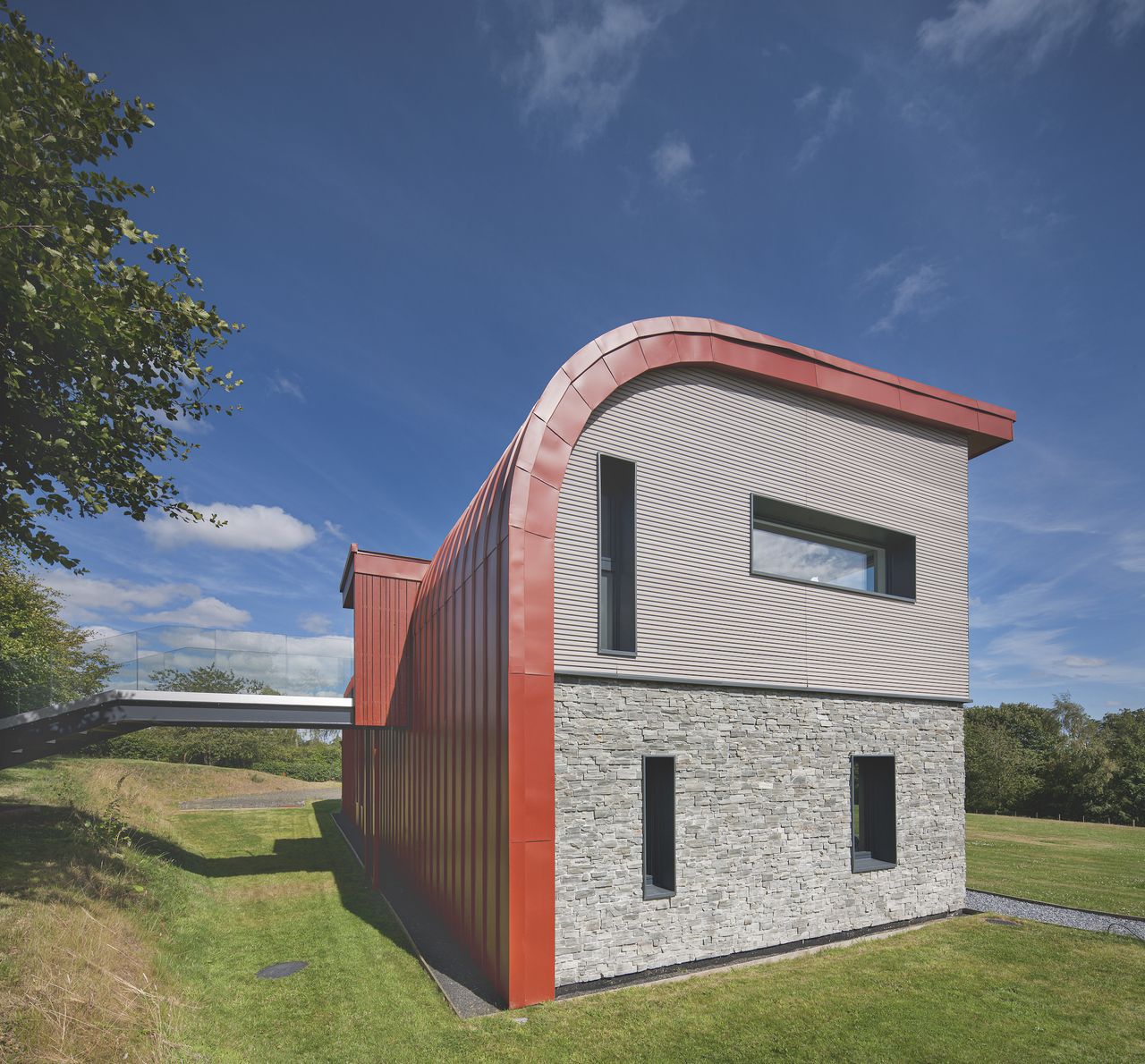

Cold bridging through the external fabric of the house was eliminated with ICF construction for the walls.(Image credit: David Barbour)
Careful detailing was required in the roof construction to ensure that the coldbridge-free design would not be compromised.(Image credit: David Barbour)
Making the most of the views
“The house design was a very collaborative process,” explains Ewan Cameron. “We began to sketch ideas together. Following this process, we started to produce site plans, floorplans and 3D models for David and Rosie to review and comment on.
"The house as constructed was based on the twelfth iteration of the design following the development of various forms, material studies, site positions, and orientations.
“The building was turned at a very specific angle as we were constantly looking at the sightlines from inside the space towards the hills and loch, to get the best views and daylight.”
Eventually an upside-down eco house design emerged, built with a low-energy, fabric-first approach. In terms of accommodation the upper level of the house includes an open-plan kitchen and pantry, dining area and lounge with external terrace with views to the south and west. A large office space and toilet/shower room also feature on this level.
Image 1 of 2

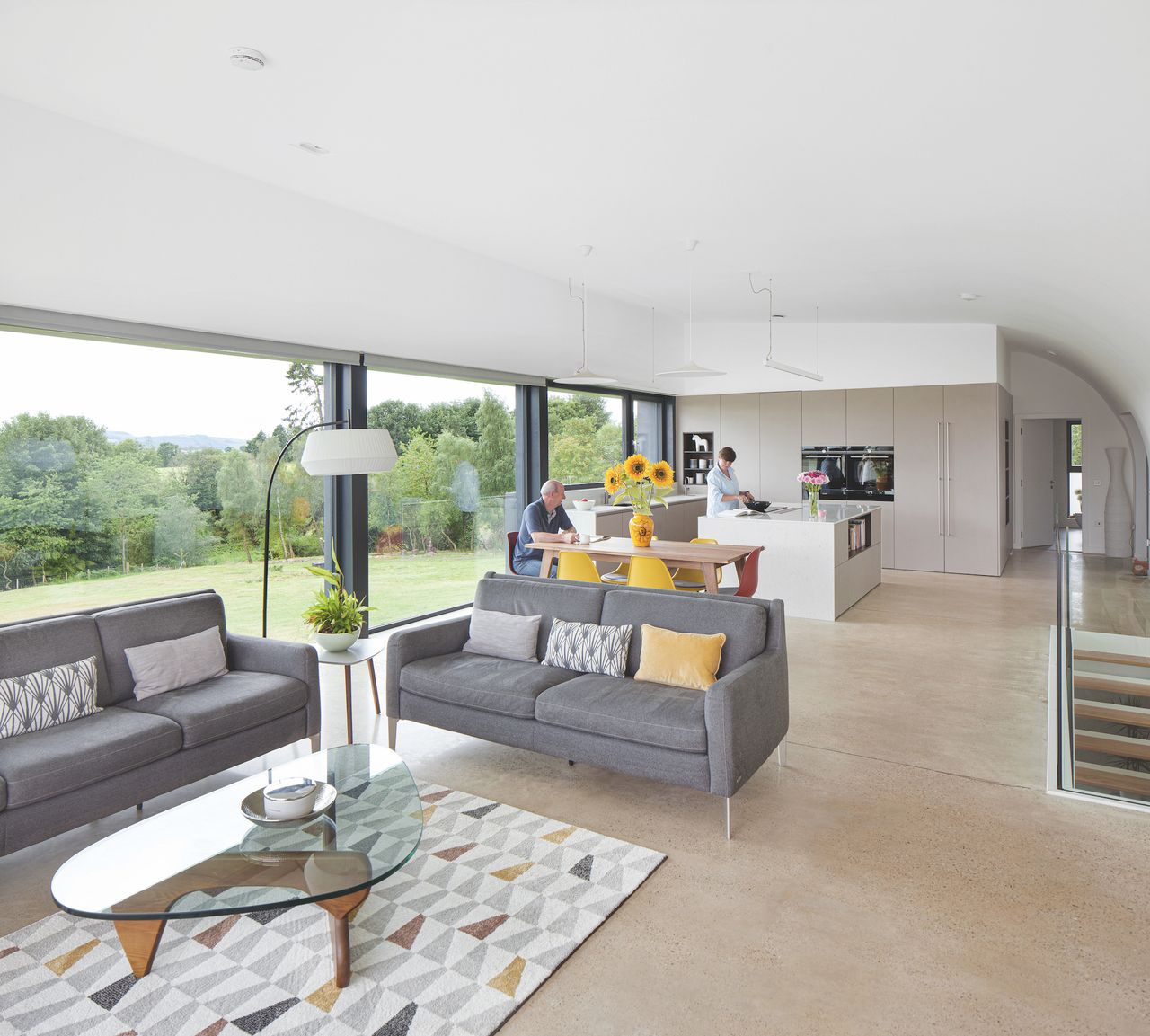

The kitchen/living/dining area is situated on the first floor, allowing for fine views across the surrounding hills and loch.(Image credit: David Barbour)

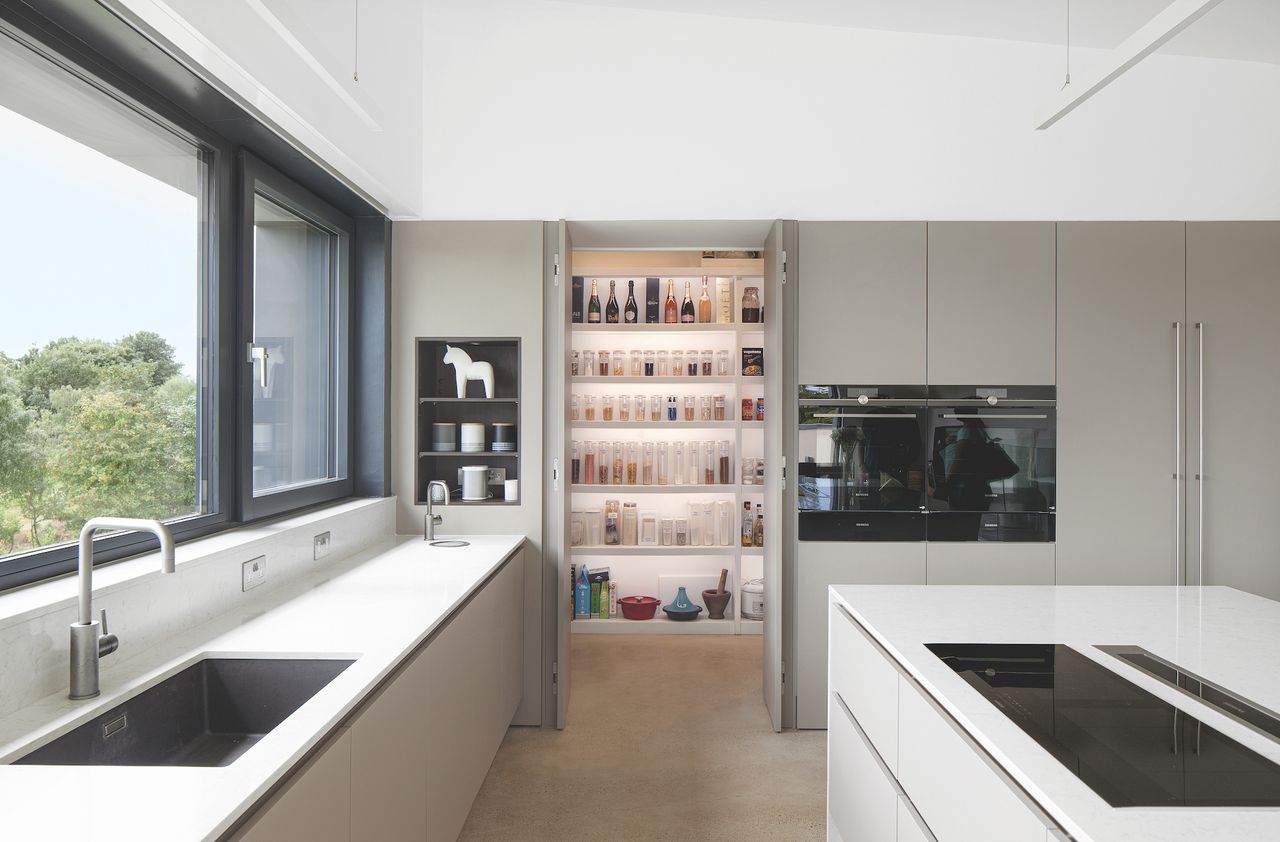

A hidden large pantry sits behind the run of kitchen cupboards.(Image credit: David Barbour)
Creating the curved roof
One of the key design features of the couple’s new house is the curved roof. “The finalised design was made up of three key elements: a curved Corten coloured standing seam powder-coated steel roof, a stone-clad base plinth wrapping around the ground floor (overlapped by the metal roof as it drapes down the north elevation) and a composite timber cladding zone, defining the upper floor on the south, east and west elevations,” says Cameron.
“We had considered a Corten steel finish to the roof to reflect local agricultural buildings; however, practicalities such as residue run-off ruled this out,” he explains. “Internally the curved ceiling provides a unique and bright living space, drawing the eye towards the views.
"The roof shape was also used to create a chapel-like bathroom, with a mirror cut into the wall to accentuate the curve.”
David and Rosie are delighted with the result. “We have concrete floors and a lot of glass upstairs, and what the curved roof does is bring a real softness to the living area.”
Image 1 of 2

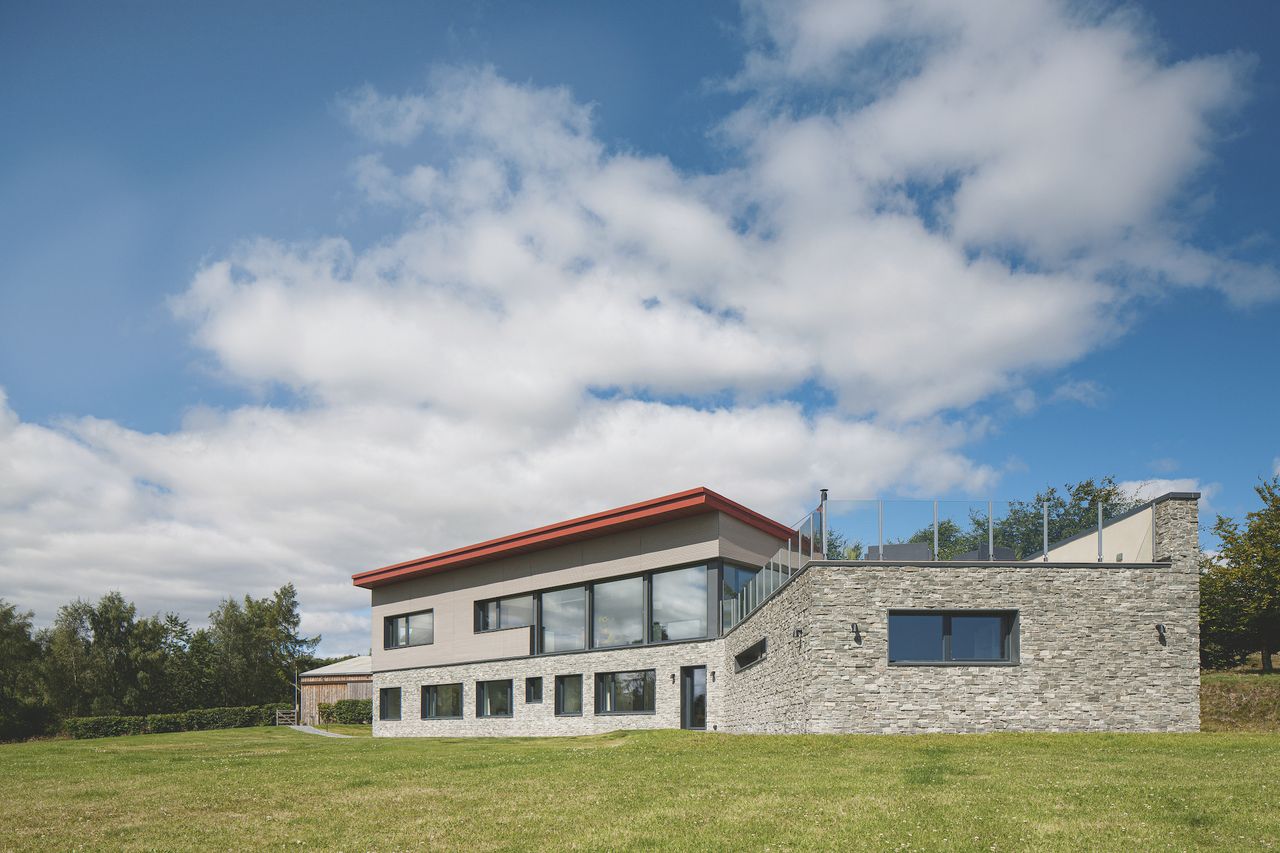

Three bedrooms (each with en suite bathrooms and open south-facing views across the garden), boot room, laundry room, storage, and plant for mechanical ventilation with heat recovery (MVHR) system are situated on the ground level alongside a garage for two cars and an external workshop.(Image credit: David Barbour)
Planners responded positively to the proposal and it gained consent without issue.(Image credit: David Barbour)
A fabric-first approach
The build also proved to be relatively straightforward, with easy site access facilitating construction of the ICF (insulated concrete formwork)-built house. The most challenging aspect for the architect was bringing the roof and walls together, making sure that there were no cold bridges. This would involve a lot of detailing to resolve.
"There was a lot of effort that went into the whole project,” Rosie explains. “I’m a perfectionist, and before we embarked on the project we did a lot of research and went to build shows, which gave us an idea of what to look for and help us decide what we did and didn’t want. We spent a lot of time researching and sourcing products and materials.
"We adopted a fabric-first approach as we wanted to get it right, and took our time choosing the right products, spending hours and hours every night trawling the internet. The whole thing is about value not cost."
